Databases types (SQL / NoSQL)

Different types of databases systems: SQL vs NoSQL

Relational databases are less suitable for horizontal scaling than NoSQL databases
Joins become very inefficient when performed across nodes and difficulty to keep ACID (Atomic, Consistent, Isolated, Durable) guarantees while ensuring all replicas have fresh data
READ can scale easily, EDIT is more challenging. Think of ensuring the integrity of a transaction (locking a row to ensure no concurrent access happens) if a data is being stored on multiple nodes/servers
NoSQL are giving up on a number of requirements, are easier to scale horizontally (less immediate consistency, data freshness and accuracy in order to gain other benefits, like scale and resilience). NoSQL are designed to ensure high availability across cluster which means consistency/durability can be sacrificed to some degree

ACID:

Atomicity : means that you guarantee that either all of the transaction succeeds or none of it does.
Consistency : All clients see the same data at the same time . Data will be valid according to all defined rules, including any constraints, cascades, and triggers that have been applied on the database.
Isolation No transaction will be affected by any other transaction. So a transaction cannot read data from any other transaction that has not yet completed.
Durability means that, once a transaction is committed, it will remain in the system – even if there’s a system crash immediately following the transaction. Any changes from the transaction must be stored permanently.

BASE:

Basically Available: Data are available as prescribed by the CAP theorem (Consistency, Availability, Partitioning Tolerance, chose 2 only). Query response can be inaccurate but system availability guaranteed
Soft state: Data consistency is developer managed
Eventually consistent: Data can be inconsistent at time t but converges towards consistency

Users table:

Laptop inventory table:

Data is organized in 2 dimensional tables interlinked by relations.
Advantages: transparent data structure, Structured Query Language, major RDBMSs adhere to ACID
Disadvantages: Scalability issues, challenge to handle large amount of data
Applications: transactional system/workflows requiring high level of integrity / consistency
Example of technos: AWS DynamoDB, Voldemort, Oracle NoSQL Database

CAP theorem: "You can only pick two":

Key	Value
User_1	`{"name": "Nicolas Daveau", "laptop":"Macbook Pro 15' 2018", "make": "Apple"}`
User_2	`{"name": "Quentin Chenevier", "laptop":"Surfacebook 2019", "make": "Microsoft"}`
User_3	`{"name": "Laurent Lapasset", "laptop":"Macbook Pro 13' 2019", "make" : "Apple"}`

Data is stored in key/value pairs
Advantages: Schema-less way and is very efficient for read and write operations. Efficient in dealing with high load, values can be stored in the form of a JSON blob, a string, etc.
Disadvantages: Not optimized for lookups (need to scan whole collection) and a parser is needed to store multiple values
Applications: storing users preference for a website, storing a shopping cart, real time adds recommendations
Example of technos: AWS DynamoDB, Voldemort, Oracle NoSQL Database

Every column is treated separately. Values of single column databases are stored contiguously.
Advantages: Very efficient for reading and aggregating data (Sum, Mean, etc.) because no need to read all columns.
Disadvantages: Less efficient for writing tuples 🡪 requires multiple accesses.
Applications: column-based NoSQL databases are widely used to manage data warehouses, business intelligence, CRM, etc.
Example of technos: HBase, Cassandra, Google big tables

Document 1
`{"name": "Nicolas Daveau", "laptop": "Macbook Pro 15’ 2018", "make": "Apple"}`

Document 2
`{"name": "Quentin Chenevier", "laptop": "Surfacebook 2019", "make": "Microsoft"}`

Document 3
`{"name": "Laurent Lapasset", "laptop": "Macbook Pro 13’ 2019", "make" : "Apple"}`

Data is retrieved as key value pair but the value part is stored as a documents. Documents are usually stored in a semi-structured data formal like JSON or XML.
Advantages: schema less and flexible, ease to integrate additional information with low maintenance burden.
Disadvantages: managing relationships between document is cumbersome, aggregations can also be more complex to handle
Applications: Yelp / Tripadvisor type of use cases, book database, etc.
Example of technos: MongoDB, Marklogic, Amazon DocumentDB

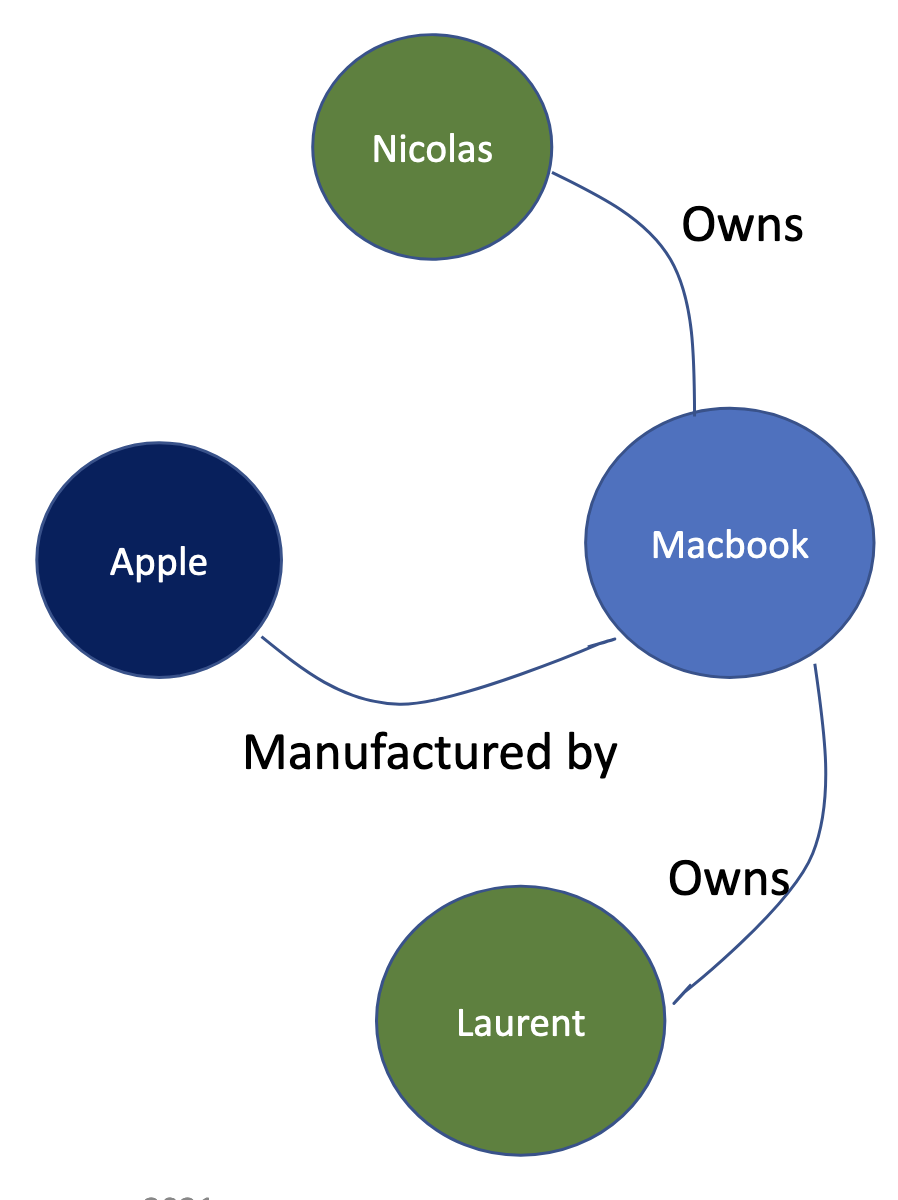

A graph database stores entities as nodes and the relationships are represented through edges of the graph. Every node has a unique identifier.
Advantages: Graph databases are by nature multi-relational and loosely connected. Traversing relationships is fast as it is captured into the data storage. Well suited for powering analytics (similarity analytics, etc.)
Disadvantages: Difficult to scale on large amount of data (difficult to scale horizontally), queries can be very expensive, no uniform query language.
Applications: Social network analytics, logistics, semantics search, intelligence, fraud detection.
Example of technos: Neo4J, Infinite Graph, OrientDB
